Features :
Greater Illumination
High-intensity optical fiber provides homogeneous illumination.
Perfect Control
Enhanced sheath stiffness allows easier insertion and precise movement control with 1:1 torsional stiffness.

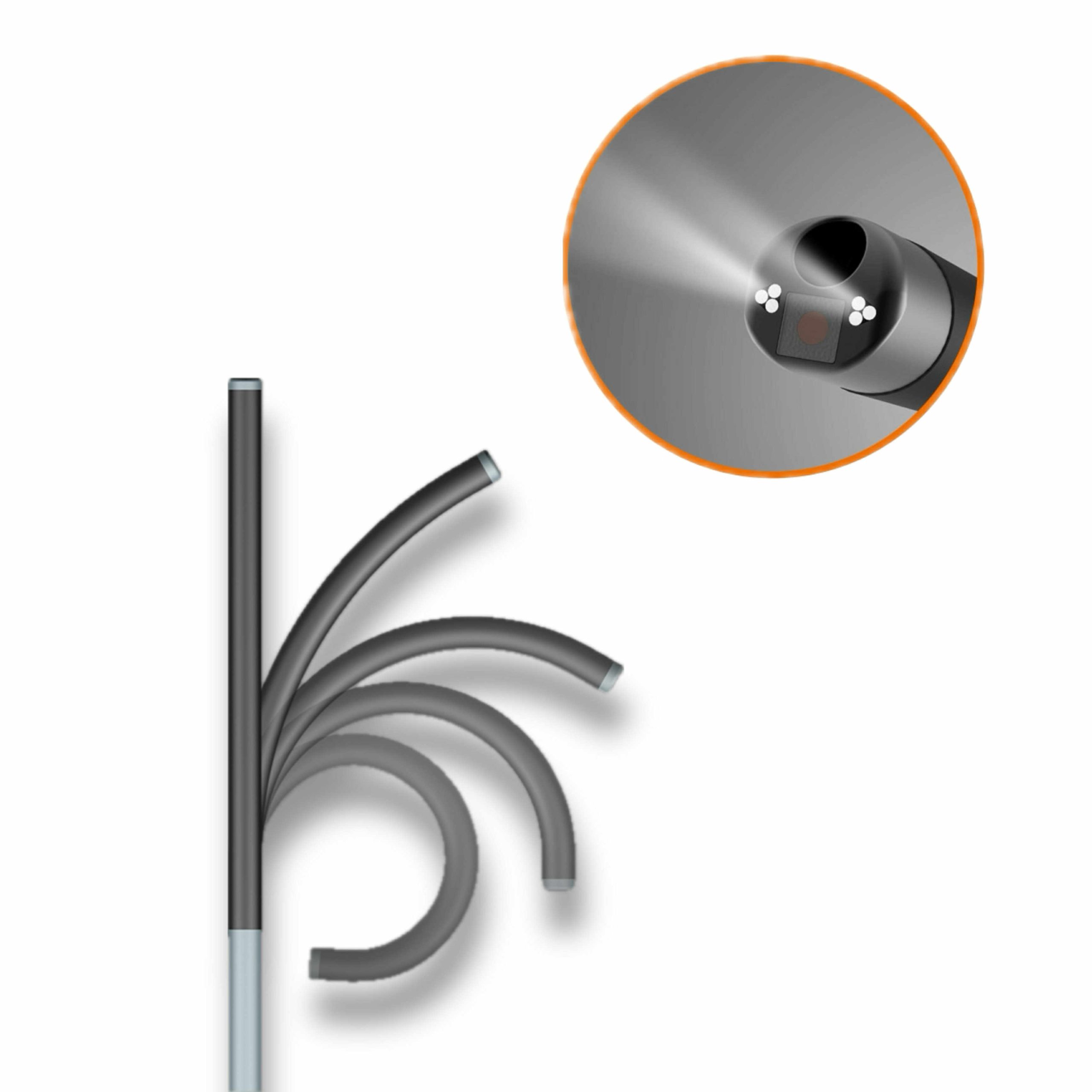

Maximum Flexibility
275° deflection in both directions enables physicians to perform procedures with greater ease and adaptability.

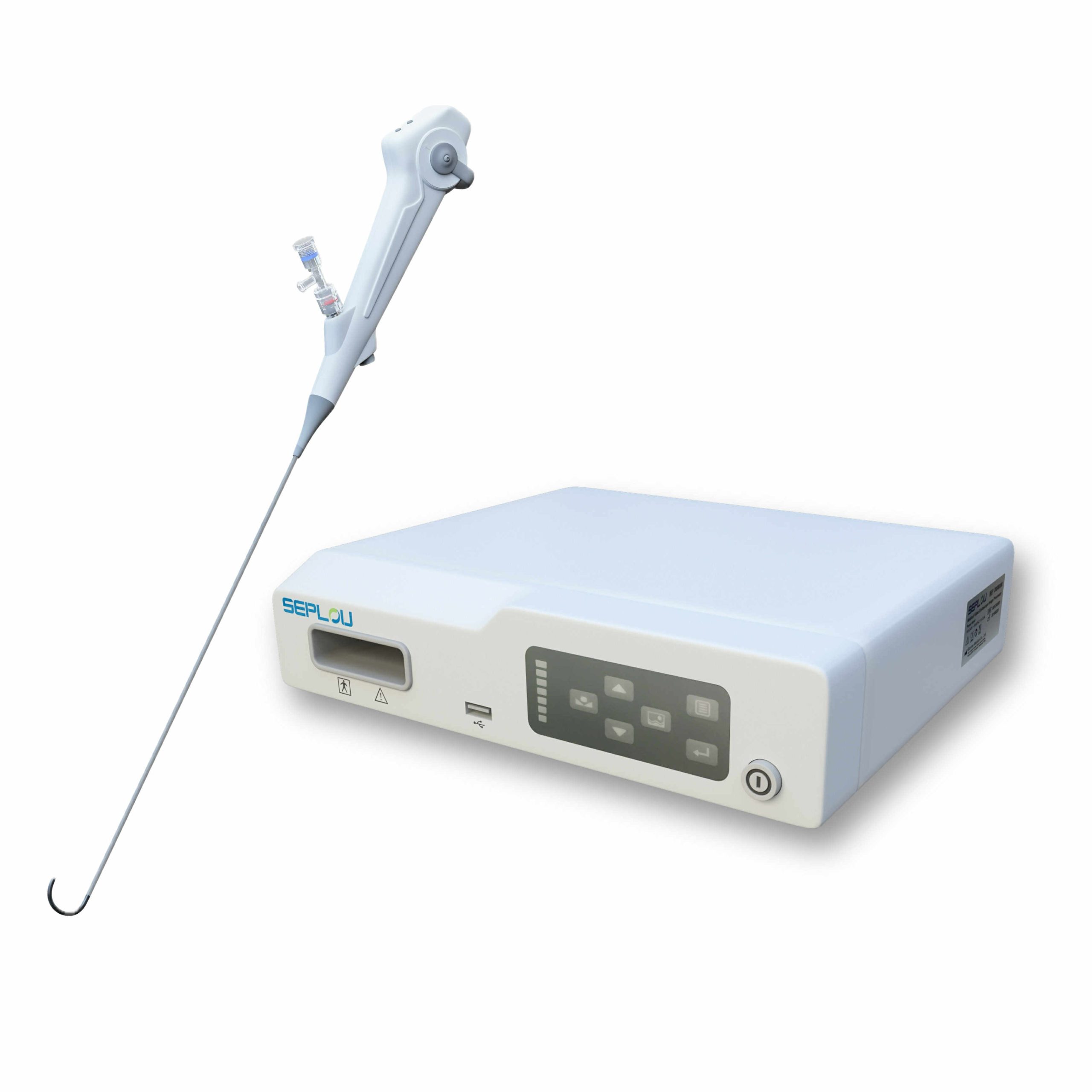

DIS™ Image Processor
Supports Seplou endoscopes during minimally invasive procedures by supplying power and processing images.
Synchronous Multi-Interface Output Support
USB, DV, HDMI, SDI, VGA, VIDEO
Impressive View
- Digital imager with a working distance of 3mm–50mm for a deep field of view
- Large 3.6F ID working and irrigation channel for high irrigation performance and an uninterrupted view

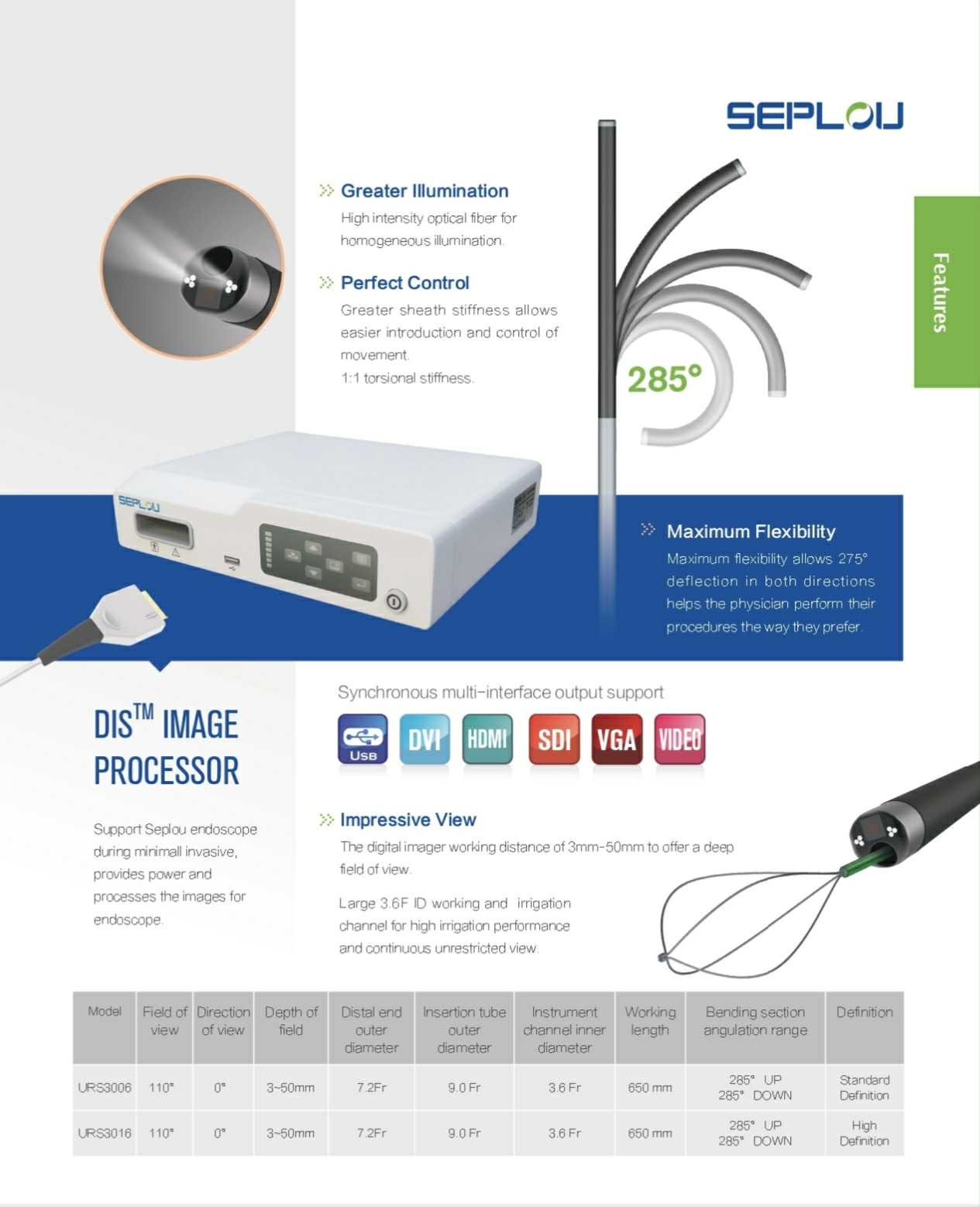

Technical Specifications :
| Specification | URS3006 | URS3016 |
|---|---|---|
| Field of View | 110° | 110° |
| Direction of View | 0° | 0° |
| Depth of Field | 3–50 mm | 3–50 mm |
| Distal End Outer Diameter | 7.2 Fr | 7.2 Fr |
| Insertion Tube Outer Diameter | 9.0 Fr | 9.0 Fr |
| Instrument Channel Inner Diameter | 3.6 Fr | 3.6 Fr |
| Working Length | 650 mm | 650 mm |
| Bending Section Angulation | 285° UP / 285° DOWN | 285° UP / 285° DOWN |
| Definition | Standard Definition | High Definition |
